1. The Problem: OPC and Its Elusive Nature

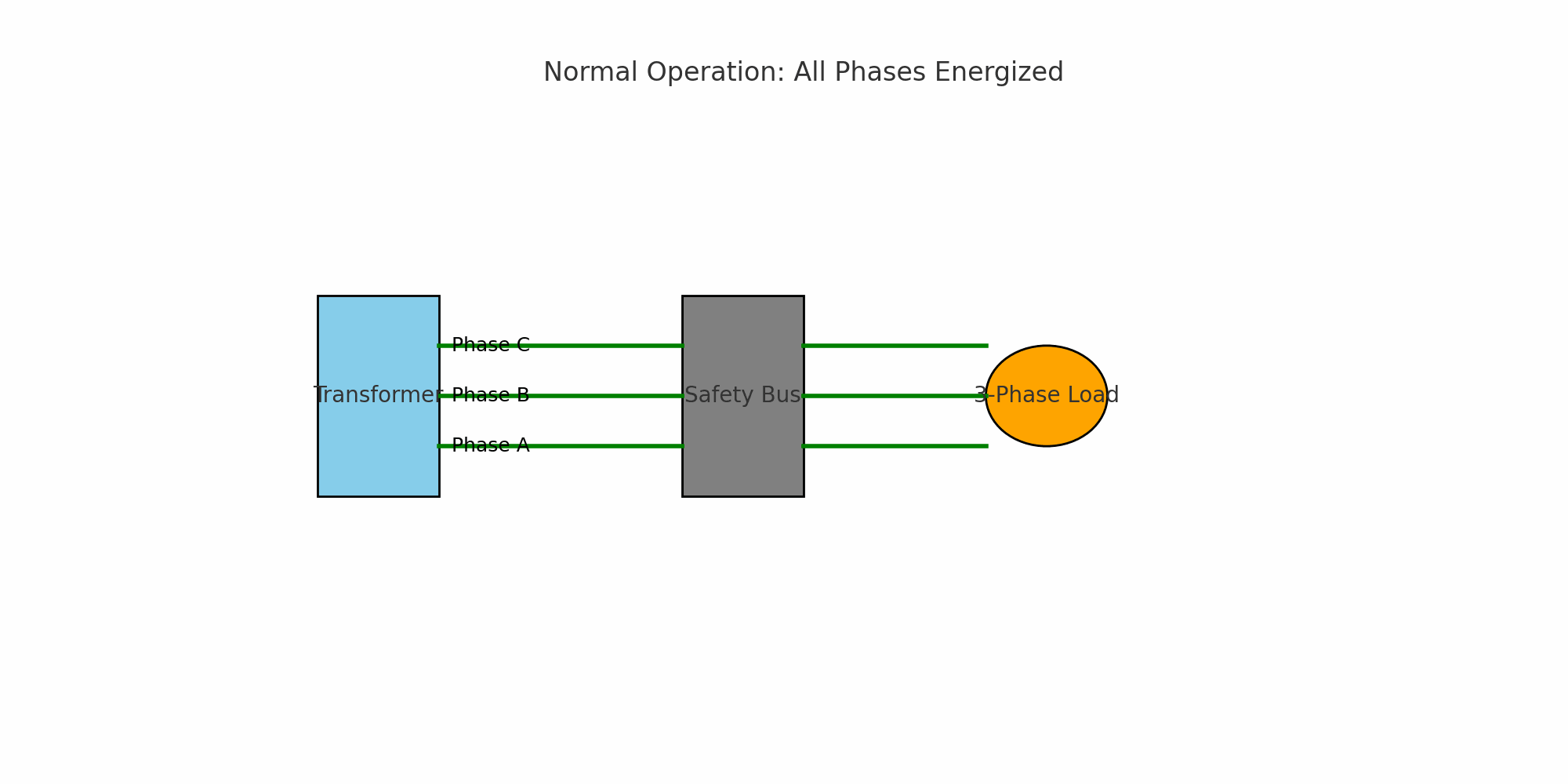

In January 2012, Byron Nuclear Generating Station’s Unit 2 experienced a subtle but dangerous electrical failure: an Open Phase Condition (OPC) on one of its offsite power transformers. A mechanical failure caused one phase conductor to disconnect, yet the system remained partially energized. This left safety-related buses in a deceptive state—energized, but unable to function correctly if called upon in an emergency.

What made this more alarming was that protective relays didn’t notice anything was wrong. The condition wasn’t detected by existing instrumentation, and no protective action was taken. Operators didn’t know about the open phase until alarms triggered from secondary effects. Had there been a demand on those safety systems, they may not have responded correctly—something that violates the core principles of nuclear safety.

This wasn’t just a Byron issue. Once discovered, the vulnerability was found to be common across U.S. nuclear plants with similar transformer configurations. OPCs were not analyzed in most plants' Final Safety Analysis Reports (FSARs) and weren’t considered credible failure modes in design basis documentation.

The consequences of this oversight were serious:

• OPCs could occur without detection

• Safety buses could remain energized but inoperable

• Existing protective relaying (based on phase balance, current magnitude, etc.) was blind to the condition

The event exposed a fundamental blind spot in how the industry had been modeling offsite power reliability and safety-related electrical system behavior. It triggered an industry-wide scramble to evaluate, mitigate, and retrofit detection methods—but the fixes that followed had their own issues, as we’ll cover next.

2. The Industry Response: A Patchwork of Good Intentions

Once the Byron incident drew national regulatory attention, the NRC issued Bulletin 2012-01, alerting all licensees to the vulnerability and requesting action. Plants were required to review their electrical designs, confirm whether they could detect an OPC, and take corrective action if needed. This led to an industry-wide retrofit wave—but the results were mixed at best.

2.1 The Common Fix: Open Phase Isolation Systems (OPIS)

Most sites deployed what became known as Open Phase Isolation Systems (OPIS). These relied primarily on current imbalance and voltage asymmetry detection logic to determine when a phase was missing. They were designed to either:

• Automatically isolate the affected transformer and trip critical loads,

• Or at minimum, alert operators via alarms so manual action could be taken.

2.2 Why It Didn’t Fully Work

The OPIS approach seemed sound on paper, but problems emerged in practice:

• Under low or no-load conditions, current-based detection became unreliable.

• Noise and harmonics could trigger false positives or mask real conditions.

• Different transformer configurations meant no one-size-fits-all logic.

• The system often couldn’t determine conclusively whether a phase was lost or just experiencing transient distortion.

Many sites eventually disabled or never implemented automatic trip logic and operated in alarm-only mode to avoid unnecessary reactor trips.

To address reliability concerns, the industry developed a "risk-informed" strategy—essentially deciding that under certain circumstances, operator intervention was sufficient instead of automation. While this reduced operational disruptions, it also reintroduced human error into what should have been a deterministic safety function.

This is where the missed opportunity really hurts. There were better ways to approach this. As we’ll explore in the next section, a high-speed differential detection scheme using digital signaling could have provided a cleaner, more robust solution—but it was rejected because it required coordination with transmission operators.

What it shows:

• A simulated toggling bit every few frames

• The receiving end sums those toggles

• When the sum reaches a threshold (like 100), the buffer resets

• If toggling stops (as it would with an open phase), the sum doesn't accumulate → problem detected

3. The Missed Opportunity: A Better Way with SEL-411L

Had the utility been willing to coordinate with the transmission operator, a significantly more robust solution was possible. A high-speed differential protection scheme using SEL-411L relays and a bit-toggling protocol over fiber could have directly and reliably detected open phase conditions—even under low or no load.

3.1 How It Would Work

The scheme involves SEL-411L relays placed at both ends of the transformer—one inside the plant and the other at the switchyard or remote transmission side. Each relay would transmit a simple digital bit that toggles state (from 0 to 1 and back) at a known frequency. If the remote relay doesn’t see that bit toggle periodically, it indicates that one phase may be disconnected or compromised.

This is fundamentally different from relying on measured current or voltage, which can fluctuate for many reasons. Instead, the toggling bit acts as a heartbeat: a reliable, simple signal that confirms circuit continuity. On the receiving end, the relay sums incoming toggles. If they don’t accumulate to a set threshold within a short period, the buffer resets and a loss-of-phase alert is triggered.

3.2 Why It Wasn’t Adopted

This system required communication infrastructure that extended outside the plant—namely, a fiber optic connection across the switchyard. And that meant the transmission operator had to be involved. Unfortunately, Exelon/Constellation (like many nuclear operators) had a strict policy of keeping all protective logic confined to the plant. The need for external equipment and cross-organizational support was a deal-breaker.

As a result, a technically sound, deterministic solution was left on the table.

This design would not only have solved the OPC detection problem but also strengthened overall transformer protection. It’s a classic case of a strong technical idea getting overruled by organizational limitations. In the next section, we’ll explore broader lessons learned and how utilities might think differently moving forward.

3.3 Pulse Detection Concept

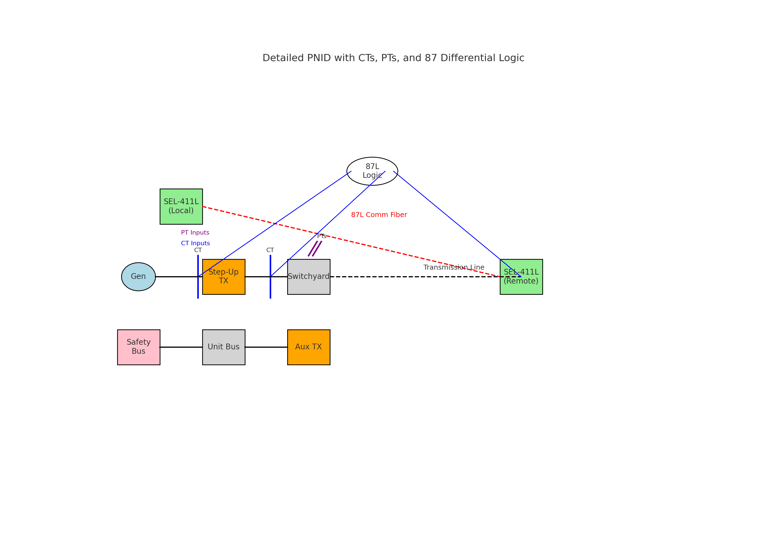

Highlights (Detailed PNID):

• CTs on both ends of the transformer feeding into the SEL-411Ls

• PTs on the switchyard side

• A clear 87L differential path with logic ellipse showing comparison

• Fiber optic relay communication

• All major power components shown from generation to safety bus

4. Lessons from the Field

The OPC detection problem—and its patchy resolution—exposes several broader lessons for the industry.

4.1 Organizational Constraints Often Override Engineering Solutions

Many technically solid ideas die not because they’re flawed, but because they require changes in process, policy, or coordination. The SEL-411L scheme would have worked. But it required fiber, coordination with transmission operators, and a willingness to think beyond the plant boundary. Those hurdles, while not technical, were enough to halt progress.

4.2 "Keep It Inside the Fence" Isn’t Always Safer

Nuclear utilities have a deeply ingrained aversion to relying on external systems. While understandable, this mindset can backfire. Keeping all protection local limits options and sometimes forces less effective designs. In a digital world with robust protocols, collaboration across fences is not only feasible—it’s necessary.

4.3 Passive Schemes Will Always Have Edge-Case Failures

Current and voltage-based detection will never be perfect. Load conditions, harmonic distortion, and configuration complexity introduce ambiguity. Active signaling schemes (like the toggling pulse logic) reduce that uncertainty significantly. It’s time the industry acknowledges that and starts designing more active monitoring logic.

4.4 The Value of Determinism in Protection

One of the most valuable characteristics of the proposed solution was that it was deterministic—either the toggling bit arrives, or it doesn’t. There’s no threshold tuning, no fuzzy logic, no operator guesswork. In nuclear protection, determinism isn’t just helpful—it’s essential.

4.5 There's Room for Other Alternatives

While fiber was the ideal transport layer for differential logic, other high-speed communication methods like microwave links could be considered in special cases. Likewise, distance relays looking into the plant transformer per phase may offer a partial solution. These concepts merit further exploration as part of a layered defense.

The OPC issue is mostly behind the industry now, but how it was handled—and what wasn’t done—remains a compelling case study in technical vs. institutional decision-making. In the final section, we’ll explore what the future could look like if these lessons are applied more broadly.

5. A Path Forward: Designing for the Next Generation

The story of OPC detection offers more than a technical footnote—it offers a blueprint for how we can think differently going forward.

5.1 Rethink Boundaries

Future plant designs—especially advanced reactors and SMRs—should rethink what belongs inside the protection boundary. High-speed, inter-system communication shouldn’t be feared. It should be embraced as a tool to enhance clarity and coordination across utility interfaces.

5.2 Design for Determinism

The lesson here is to prioritize detection mechanisms that are absolute, not inferred. Active signaling, heartbeat logic, and time-bound response validation should all become standard practice where lives and critical infrastructure are at stake.

5.3 Encourage Collaboration with Transmission Operators

Whether through joint design reviews, co-managed equipment, or shared monitoring, there must be better coordination between plant operators and transmission entities. Protection systems are only as strong as their weakest shared interface.

5.4 Push for Regulatory Flexibility

Sometimes, the rules themselves become part of the problem. The industry and the NRC should look at ways to make it easier—not harder—to implement protection schemes that cross administrative boundaries when it clearly improves reliability and safety.

5.5 Keep Asking: What Are We Missing?

OPC was hiding in plain sight for decades. What other scenarios are being ignored today because they fall into a gray area between "electrical" and "safety"? Periodic re-evaluation of assumptions is not just good engineering—it’s good ethics.

If utilities, vendors, regulators, and engineers alike can carry forward the lessons from the OPC issue, we can design more resilient systems—not just for what we expect to go wrong, but for what we haven’t yet imagined.

Final note:

The 2012 problem still exists in a way that if the same event occurred it would require manual action from a human operator. This impacts nearly every nuclear power station in the world that came online pre ~1990.

Link to a report off the Nuclear Regulatory Comission site.
