This is also part of a Miley Cyrus "I Want to Be Your Friend" gift package project.

🎁 Burning Man Gift Concept: "Nothing Compares 2 U" Audible Fridge Gift

• Concept: Rather than capturing a photo, participants capture a 10-second audible memory with a friend. Press record, speak your truth, play it back. Magnetic, hangable, and touchable.

• Power: 3V coin cell should be enough for short messages. If it’s not holding charge well under load, consider a small Li-ion 3.7V cell (like 102030).

• Aesthetic: Decorate with feathers, glitter, laser-cut silhouettes, or a heart-shaped paper tag saying “Nothing Compares 2 U”.

🛠️ Engineering Schematic & Parts List for ISD1820 Audible Gift (No Arduino Version)

🔧 Parts List (with links)

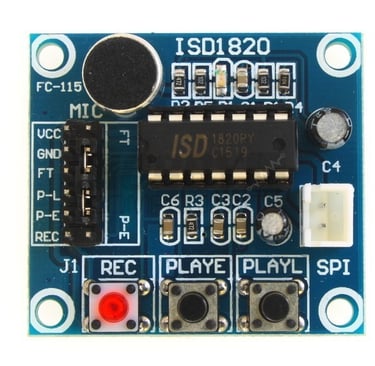

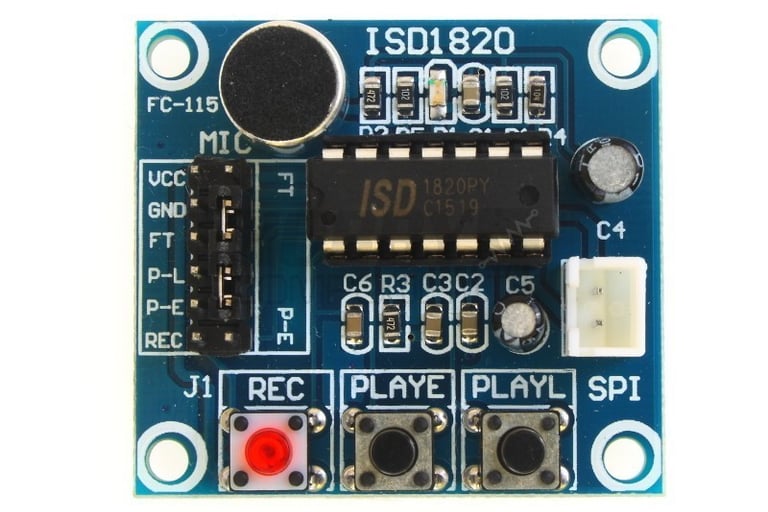

1. ISD1820 Voice Recorder Module

   • Description: Simple record/playback board with built-in mic and speaker pins

   • Buy on Amazon | AliExpress

2. 8Ω 0.5W Mini Speaker

   • Compact and loud enough for a short playback

   • Amazon | AliExpress

3. CR2032 3V Coin Cell Battery + Holder (Note: Some modules work down to 3V but check the amp draw)

   • Battery Holder

   • CR2032 Battery

4. SPST Mini Push Button (Record + Play)

   • Use 2x buttons or re-route the onboard ones with wires

   • Example Button Set

5. Fridge Magnet Backing (Optional)

   • Thin neodymium sheet or soft rubber magnet

   • Amazon Magnet Sheet

6. 3D-Printed or Laser-Cut Case (Optional lightweight enclosure)

   • Use PLA, acrylic, or even repurposed bottle caps

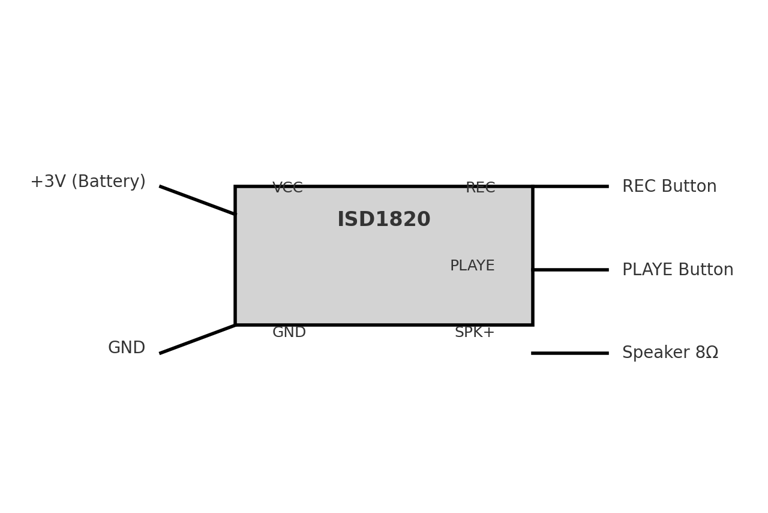

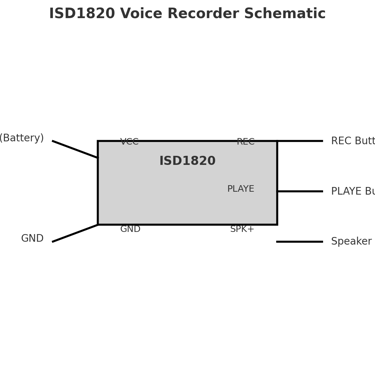

🧩 Basic Schematic (ISD1820 Standalone Version)

[Battery + (CR2032)] ----> [VCC on ISD1820]

[Battery –] --------------> [GND on ISD1820]

[SPK+ and SPK–] ---------> [Mini 8Ω speaker]

[Record Button] ---------> [RECORD Pin to GND] [Play Button] -----------> [PLAYE Pin to GND]

💡 You can wire buttons to the front of the case, letting users record or playback. Use "edge trigger" on PLAYE so playback stops when released.

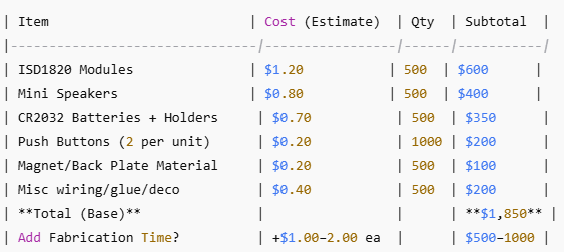

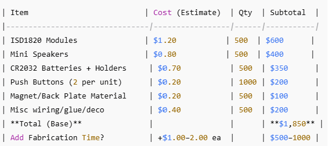

💰 Angel Donor Breakdown for 500 Units

→ Total: $1,850–$2,850 (sometimes you can get things in kits that include some line items)
A ~$2K angel donor could make it happen at scale. Even more if assembly gets community help.
